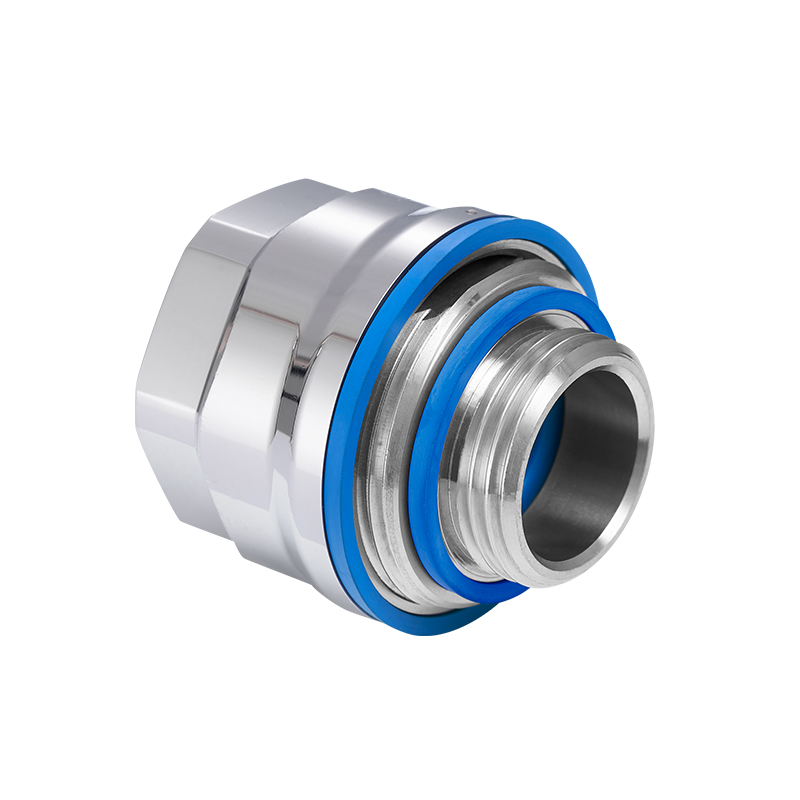

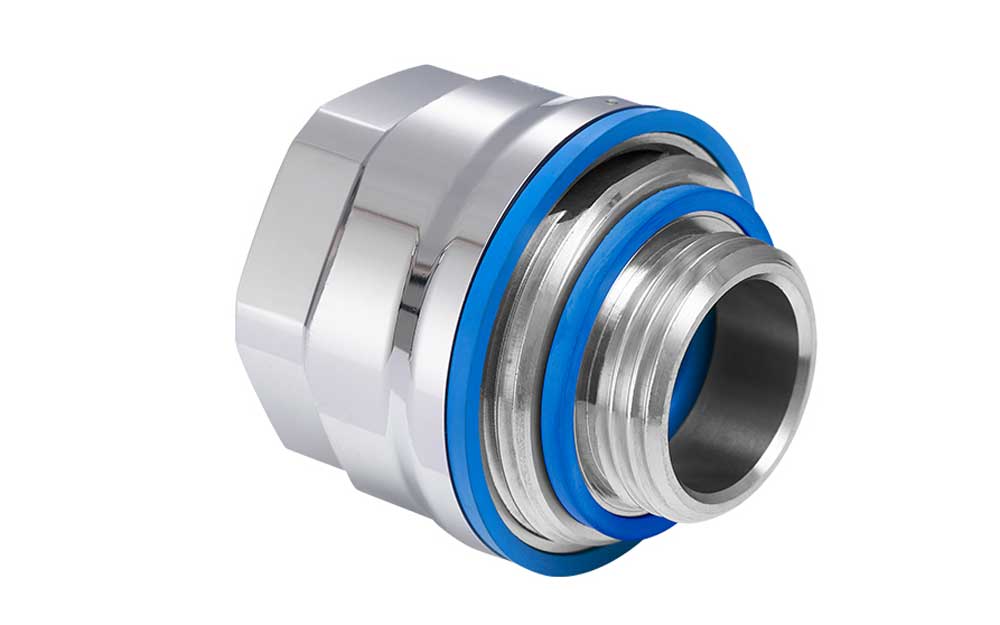

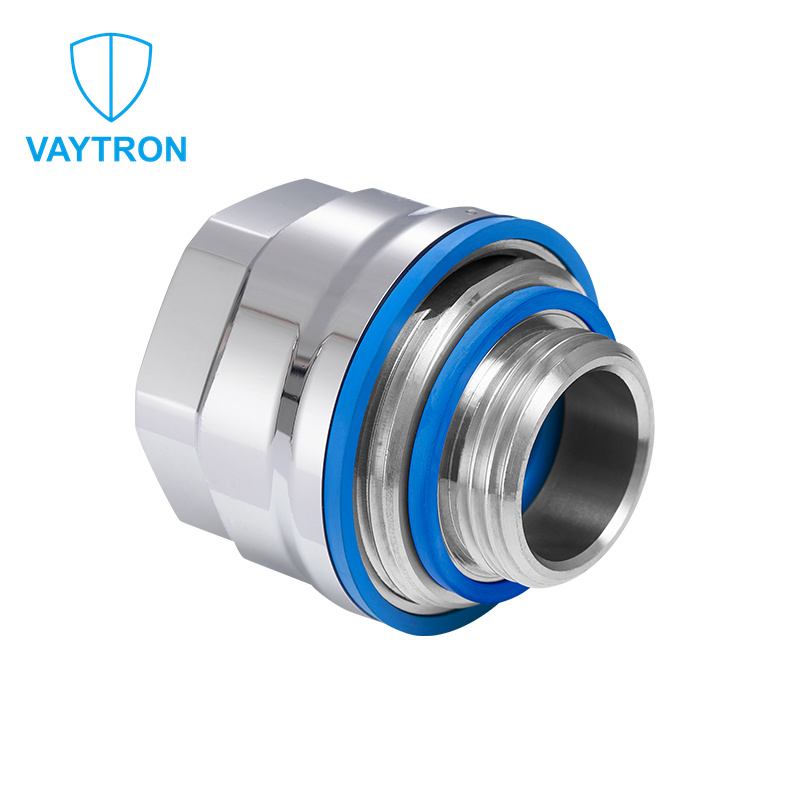

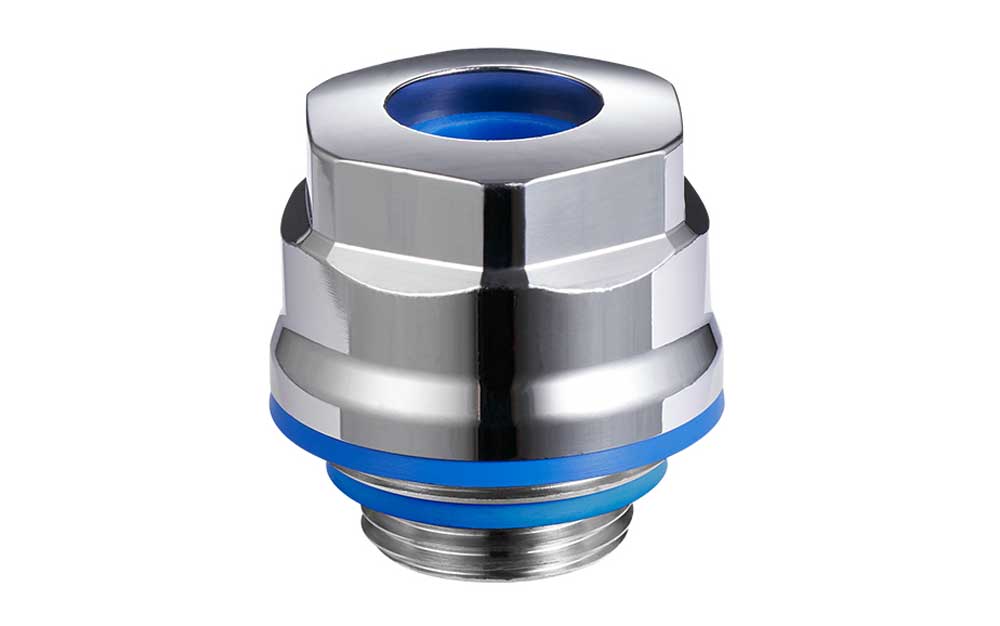

Hygienic SS316L Cable Gland — Type S (Standard)
Technical Drawing & Dimensions

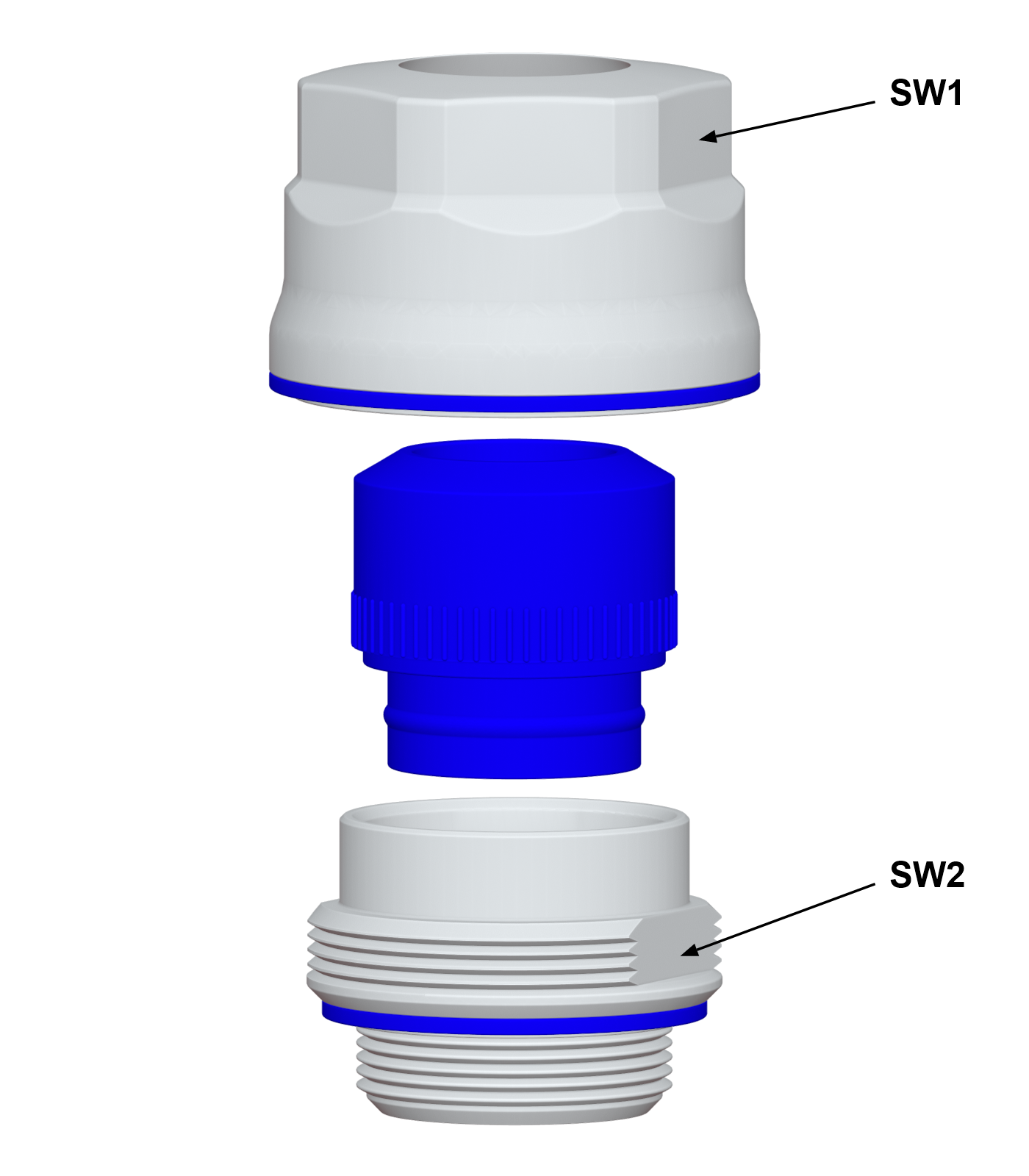

The dimension drawing identifies AG, GL, H, D, SW1 and SW2. Use these references together with the size table below. All cable-range and dimensional values in the table are in millimetres.
-

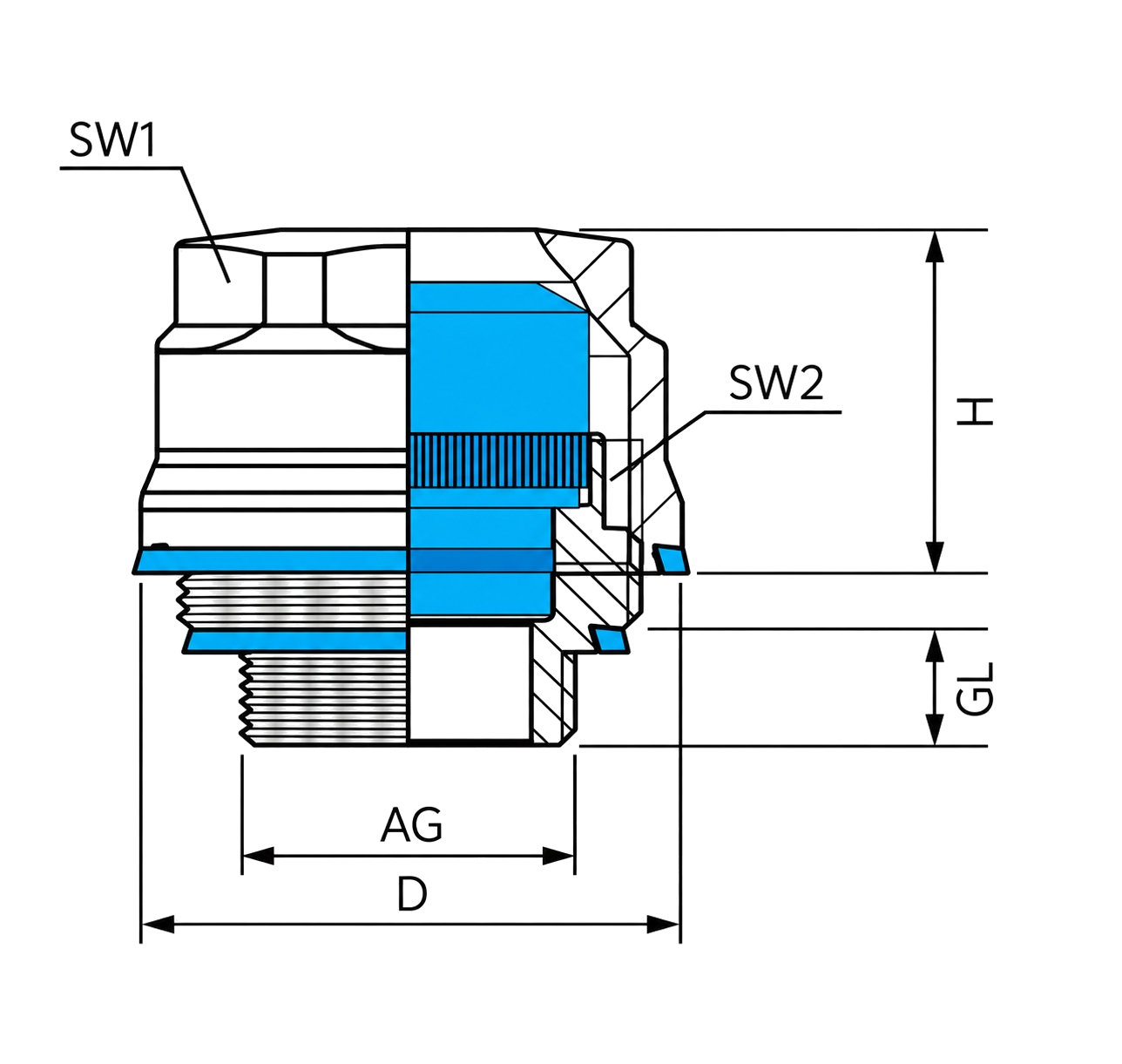

Type S dimension drawing: AG, GL, H, D, SW1 and SW2
Dimensions and Cable Ranges
Select the row that matches both the equipment entry thread (AG) and the outside diameter of the cable.
-
Model
Cable range
AG
GL
H
D
SW1/SW2
M16x1.5
4.5-7.0
M16x1.5
7.6
19.8
27
21/19
7-10
M16x1.5
7.6
19.8
27
21/19
9-12
M16x1.5
7.6
19.8
27
21/19
M20x1.5
4-6
M20x1.5
6
22.5
33
27/24
6-9
M20x1.5
6
22.5
33
27/24
9-12
M20x1.5
6
22.5
33
27/24
11-14
M20x1.5
6
22.5
33
27/24
M25x1.5
11-13
M25x1.5
7.6
23.5
38
30/30
13-16
M25x1.5
7.6
23.5
38
30/30
15-18
M25x1.5
7.6
23.5
38
30/30
M32x2.0
18-21
M32x2.0
9.6
26.5
45
36/36
21-25
M32x2.0
9.6
26.5
45
36/36
Technical Data
Body: AISI 316L stainless steel / EN 1.4404
Surface finish: Matte or polished, Ra < 0.8 µm
Enclosure sealing ring: Blue FDA H-NBR, -25 °C to +150 °C
Cable seal: Food-grade silicone, -60 °C to +200 °C
Protection rating: IP68 / IP69K
Compliance: 3-A / FDA
Frequently Asked Questions
Is Type S suitable for high-pressure washdown?
Yes - it is rated IP69K, covering close-range, high-pressure, high-temperature jet cleaning.
What is the temperature range?
The enclosure sealing ring is rated -25 °C to +150 °C and the food-grade silicone cable seal is rated -60 °C to +200 °C.
Can I get threads other than metric?
Metric (M) is standard; PG and NPT are available on request.
Standard or narrow?
For tight installation spaces choose Type N; otherwise Type S is the default.

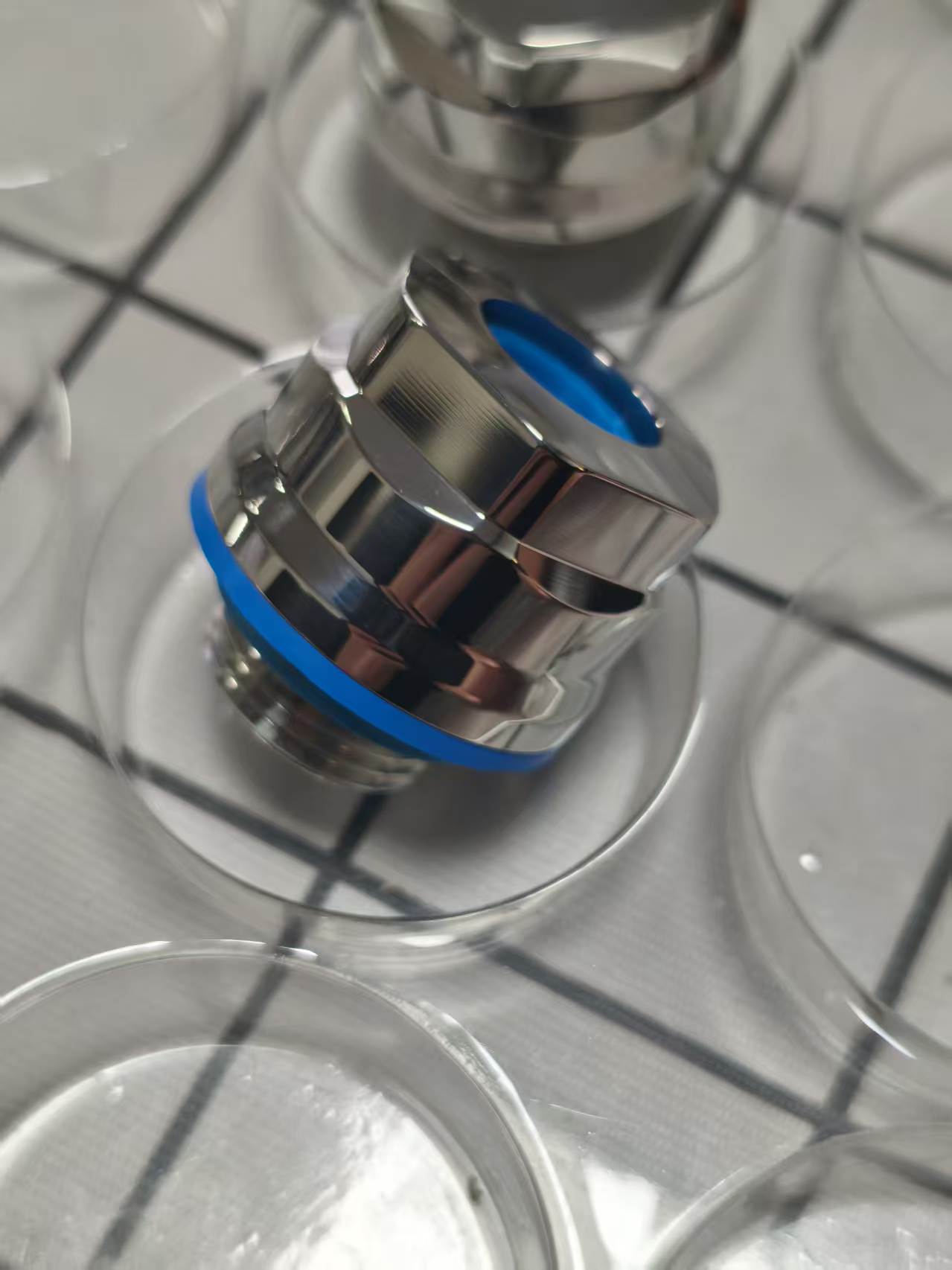

Key Features of Type S
• Double sealing - a blue H-NBR ring seals against the enclosure and a food-grade silicone insert seals around the cable.
• Anti-rotation grip - a gear-tooth elastomer holds the cable steady during installation and use, helping prevent twisting while the pressure screw is tightened.
• Drainable, easy-clean body - the streamlined body has rounded corners, no sharp angles and Ra < 0.8 µm surfaces to support drainage and easier cleaning.
• Rugged SS316L - corrosion-, impact-, acid- and alkali-resistant for demanding washdown environments.
How to Select the Correct Size
First match the AG thread to the equipment entry. Then select a row whose cable range includes the cable's outside diameter. Finally, confirm GL, H, D and SW1/SW2 against the available installation space and tooling.

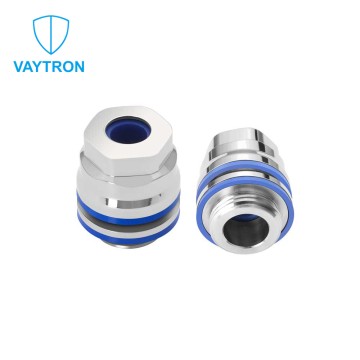

Need a Slimmer Body? Type N
Where mounting depth or clearance is tight, the Type N (narrow) version offers the same hygienic design and sealing in a more compact body.
Typical Applications
Type S is used in hygiene-critical equipment and washdown areas, including:
• Dairy and beverage processing
• Bakery and confectionery
• Meat and poultry lines
• Pharmaceutical production and packaging
• Biotechnology and cleanrooms
• Chemical washdown areas
