VTS28
Technical Drawing & Dimensions
-
-
99 variants
Part Series d3 L d1 d2 h A/F VTS28 M3 6 11 11.5 9.5 7 VTS28 M3 8 11 11.5 9.5 7 VTS28 M3 10 11 11.5 9.5 7 VTS28 M4 5 11 11.5 9.5 7 VTS28 M4 6 11 11.5 9.5 7 VTS28 M4 8 11 11.5 9.5 7 VTS28 M4 10 11 11.5 9.5 7 VTS28 M4 12 11 11.5 9.5 7 VTS28 M4 16 11 11.5 9.5 7 VTS28 M4 20 11 11.5 9.5 7 VTS28 M4 25 11 11.5 9.5 7 VTS28 M4 30 11 11.5 9.5 7 VTS28 M5 5 12 12.5 10.5 8 VTS28 M5 6 12 12.5 10.5 8 VTS28 M5 8 12 12.5 10.5 8 VTS28 M5 10 12 12.5 10.5 8 VTS28 M5 12 12 12.5 10.5 8 VTS28 M5 16 12 12.5 10.5 8 VTS28 M5 20 12 12.5 10.5 8 VTS28 M5 25 12 12.5 10.5 8 VTS28 M5 30 12 12.5 10.5 8 VTS28 M5 35 12 12.5 10.5 8 VTS28 M5 40 12 12.5 10.5 8 VTS28 M5 45 12 12.5 10.5 8 VTS28 M5 50 12 12.5 10.5 8 VTS28 M6 6 14 14.5 12.22 10 VTS28 M6 12 14 14.5 12.22 10 VTS28 M6 16 14 14.5 12.22 10 VTS28 M6 20 14 14.5 12.22 10 VTS28 M6 25 14 14.5 12.22 10 VTS28 M6 30 14 14.5 12.22 10 VTS28 M6 35 14 14.5 12.22 10 VTS28 M6 40 14 14.5 12.22 10 VTS28 M6 45 14 14.5 12.22 10 VTS28 M6 50 14 14.5 12.22 10 VTS28 M8 8 18 18.3 14.5 13 VTS28 M8 16 18 18.3 14.5 13 VTS28 M8 20 18 18.3 14.5 13 VTS28 M8 25 18 18.3 14.5 13 VTS28 M8 30 18 18.3 14.5 13 VTS28 M8 35 18 18.3 14.5 13 VTS28 M8 40 18 18.3 14.5 13 VTS28 M8 45 18 18.3 14.5 13 VTS28 M8 50 18 18.3 14.5 13 VTS28 M8 55 18 18.3 14.5 13 VTS28 M8 60 18 18.3 14.5 13 VTS28 M8 70 18 18.3 14.5 13 VTS28 M8 75 18 18.3 14.5 13 VTS28 M10 10 21 21.0 17.92 16 VTS28 M10 20 21 21.0 17.92 16 VTS28 M10 25 21 21.0 17.92 16 VTS28 M10 30 21 21.0 17.92 16 VTS28 M10 35 21 21.0 17.92 16 VTS28 M10 40 21 21.0 17.92 16 VTS28 M10 45 21 21.0 17.92 16 VTS28 M10 50 21 21.0 17.92 16 VTS28 M10 55 21 21.0 17.92 16 VTS28 M10 60 21 21.0 17.92 16 VTS28 M10 65 21 21.0 17.92 16 VTS28 M10 70 21 21.0 17.92 16 VTS28 M12 20 25 24.9 21 18 VTS28 M12 25 25 24.9 21 18 VTS28 M12 30 25 24.9 21 18 VTS28 M12 35 25 24.9 21 18 VTS28 M12 40 25 24.9 21 18 VTS28 M12 45 25 24.9 21 18 VTS28 M12 50 25 24.9 21 18 VTS28 M12 55 25 24.9 21 18 VTS28 M12 60 25 24.9 21 18 VTS28 M12 65 25 24.9 21 18 VTS28 M12 70 25 24.9 21 18 VTS28 M12 75 25 24.9 21 18 VTS28 M12 80 25 24.9 21 18 VTS28 M14 20 28 27.8 23.5 21 VTS28 M14 25 28 27.8 23.5 21 VTS28 M14 30 28 27.8 23.5 21 VTS28 M14 35 28 27.8 23.5 21 VTS28 M14 40 28 27.8 23.5 21 VTS28 M14 45 28 27.8 23.5 21 VTS28 M14 50 28 27.8 23.5 21 VTS28 M14 55 28 27.8 23.5 21 VTS28 M14 60 28 27.8 23.5 21 VTS28 M14 65 28 27.8 23.5 21 VTS28 M14 70 28 27.8 23.5 21 VTS28 M14 75 28 27.8 23.5 21 VTS28 M14 80 28 27.8 23.5 21 VTS28 M16 20 32 31.7 26 24 VTS28 M16 25 32 31.7 26 24 VTS28 M16 30 32 31.7 26 24 VTS28 M16 35 32 31.7 26 24 VTS28 M16 40 32 31.7 26 24 VTS28 M16 45 32 31.7 26 24 VTS28 M16 50 32 31.7 26 24 VTS28 M16 55 32 31.7 26 24 VTS28 M16 60 32 31.7 26 24 VTS28 M16 65 32 31.7 26 24 VTS28 M16 70 32 31.7 26 24 VTS28 M16 75 32 31.7 26 24 VTS28 M16 80 32 31.7 26 24 No matching sizes. Change a filter or select Reset.
Technical Data
- Bolt Body
- AISI 316L stainless steel / EN 1.4404
- Certification
- 3-A, IP69K, FDA Compliance (seal materials)
- HNBR Sealing Ring
- Blue, 85 ±5 Shore A, −25 °C to +150 °C
- EPDM Sealing Ring
- Blue, 85 ±5 Shore A, −40 °C to +120 °C
- Steel Grade and Property Class
- M3–M10: A4-80M12–M16: A4-70
FDA compliance applies to the sealing-ring material.
Hygienic Design Bolts Features

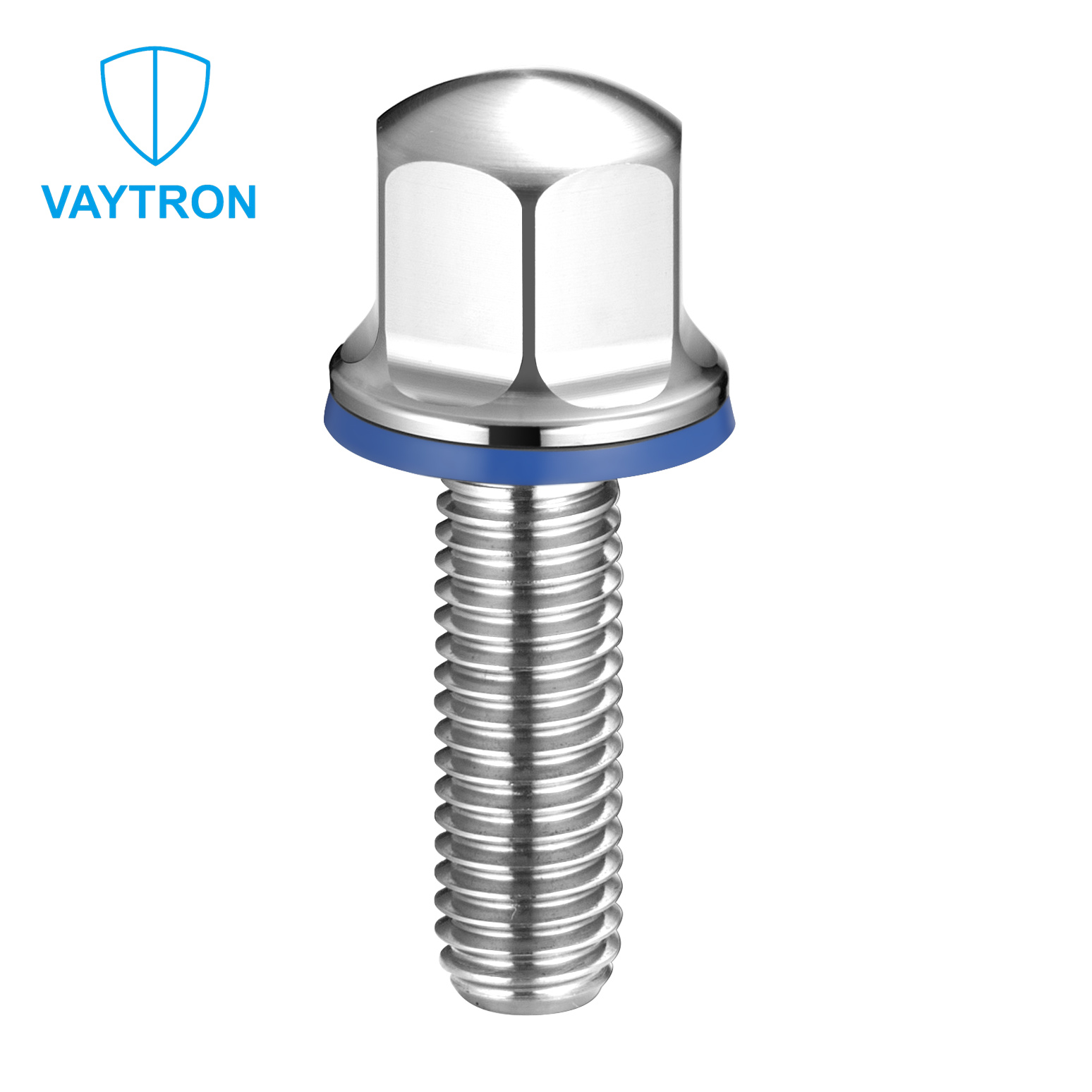

This hygienic bolt is made from high-quality, cold-drawn 316L stainless steel, with rolled threads and a mirror-polished finish with a surface roughness of Ra < 0.4 μm. It offers excellent corrosion resistance and high mechanical strength. Its smooth geometry and rounded, burr-free edges help minimize dirt and bacterial buildup and reduce liquid retention, making it easier to clean and sterilize in place (CIP and SIP). VAYTRON’s distinctive hex head features curved wrenching faces that allow water and cleaning solutions to drain freely even when one face is horizontal, helping prevent prolonged pooling and reduce the risk of microbial growth.
Seal Fit Optimized Through Finite Element Simulation
We combined simulations based on the finite element method (FEM) with practical engineering experience to refine the sealing ring’s thickness, diameter and dimensional tolerances. As the fastener is tightened, the ring compresses and conforms to the stainless steel groove, closing the exposed gap at the mounting interface. This helps keep cleaning solution from collecting in the joint and reduces the risk of microbial contamination.
All food-grade HNBR and EPDM raw rubber used in our seals comes from ARLANXEO. These seals are manufactured exclusively in a production area dedicated to food-grade rubber components to prevent cross-contamination with industrial-grade rubber. We control every stage, from receipt of raw materials through seal manufacture.
Single-Pass Turning of Hex Flats
VAYTRON developed a turning process that forms the wrench flats on its hex-head fasteners in a single pass. The process keeps the hex profile precisely centered on the fastener axis while controlling burrs and machining marks along the edges of the flats. The wrench seats securely against the flats during tightening, distributing the load more evenly across the contact faces and reducing the risk of scratching the bolt head.
Metal-to-Metal and Seal-Free Options
Through our discussions with pharmaceutical equipment manufacturers, we have found that elastomer seals are unsuitable for some high-temperature sterilization and cleaning processes. However, these applications may still require sealing at the fastening point.
Hygienic screw with a metal-to-metal seal: This option uses a metal-to-metal sealing design and requires the sealing contact surface to be precisely finished to Ra < 0.8 µm.
Hygienic screw without a seal: This option is available for applications where sealing is not required.
Applications
Hygienic stainless steel bolts are widely used in:
· Food processing equipment
· Dairy production systems
· Beverage filling and packaging lines
· Pharmaceutical manufacturing machinery
· Biotech and cleanroom equipment
· Industrial washing and hygiene-critical environments
FAQ
What is the difference between HNBR and EPDM seals?
HNBR: High mechanical strength and good resistance to oil, heat, wear, ozone, and ageing. Well suited to demanding sealing applications involving oils and lubricants.
EPDM: Excellent resistance to weathering, ozone, hot water, and steam, with good flexibility at low temperatures. Generally unsuitable for petroleum-based oils and fuels.
Based on our market observations, HNBR seals are common in food-processing equipment and EPDM seals in pharmaceutical equipment. For other applications, contact us to confirm the suitable material.
What FDA requirements do VAYTRON’s rubber seals meet?
The HNBR and EPDM rubber sealing materials used in VAYTRON hygienic bolts comply with the applicable requirements of U.S. FDA 21 CFR § 177.2600 for rubber articles intended for repeated contact with food. The regulation sets requirements for rubber formulation and specifies limits on total extractives from finished rubber articles intended for repeated contact with aqueous or fatty foods.
