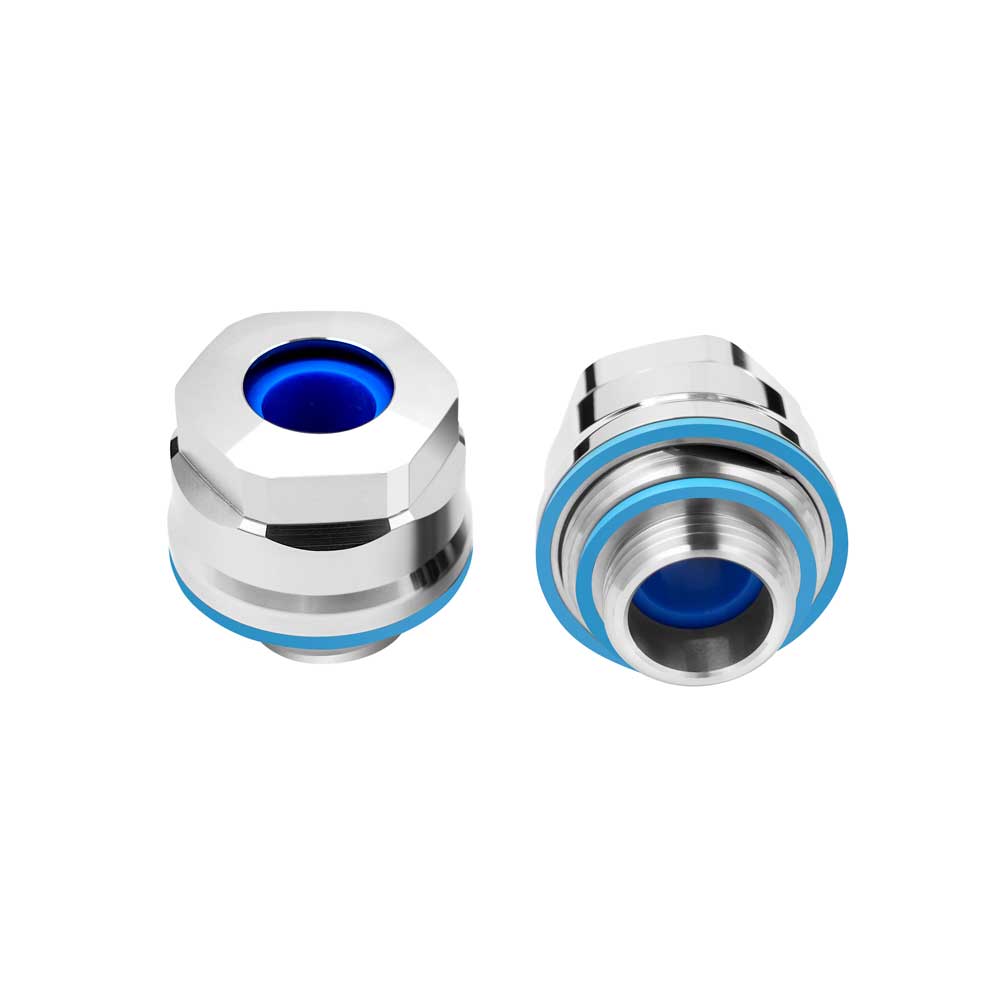

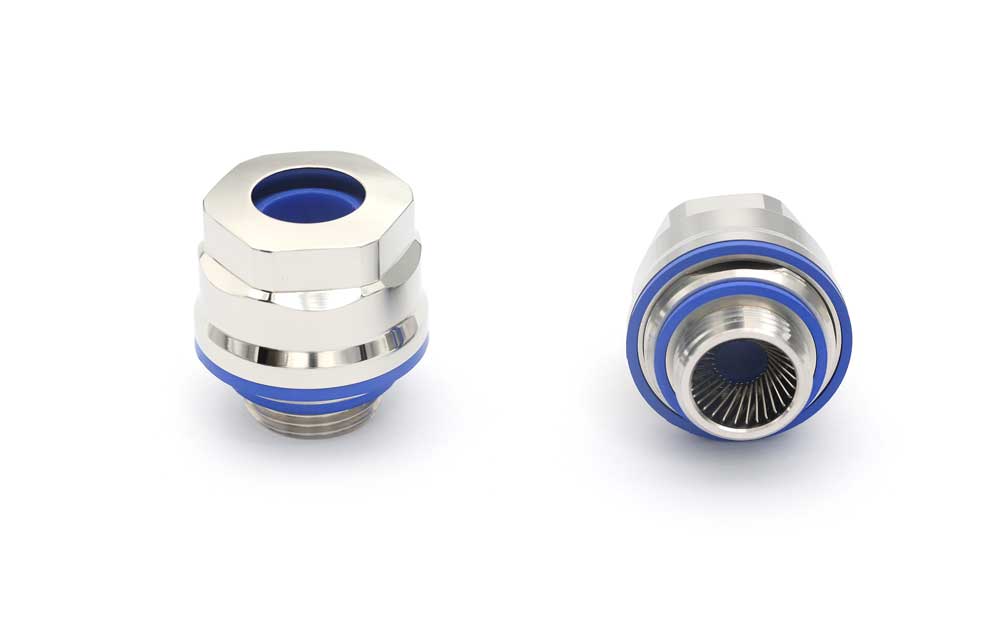

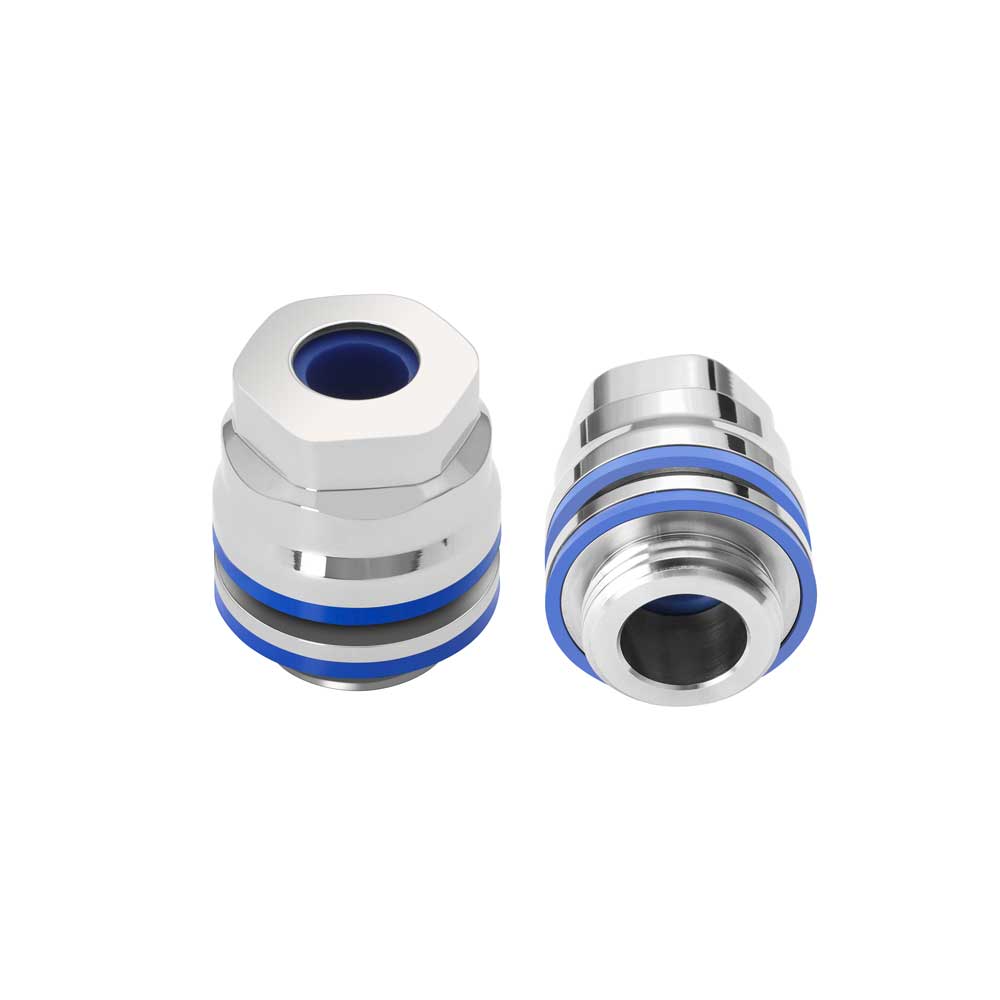

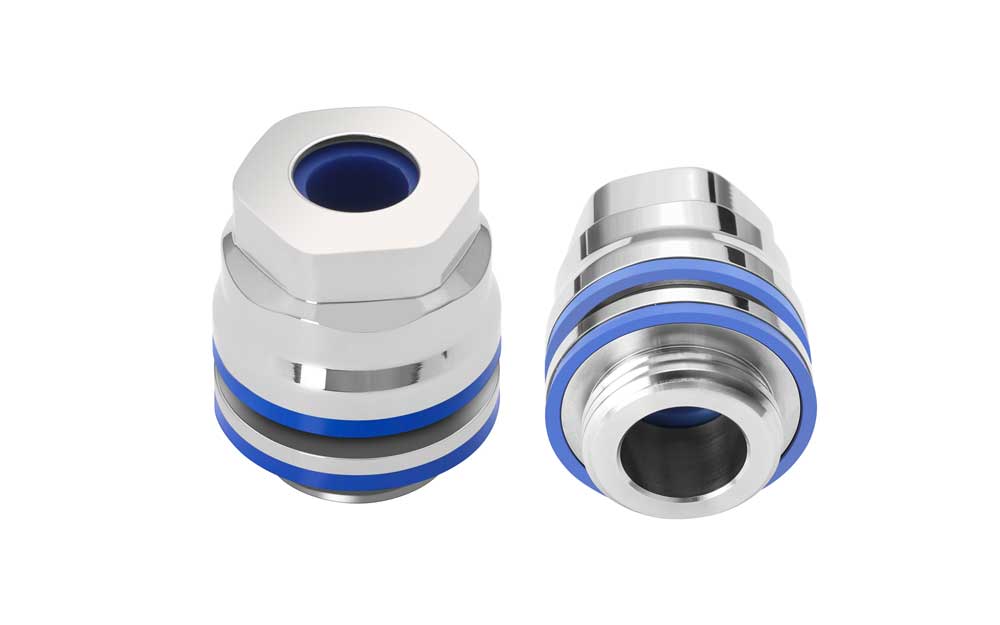

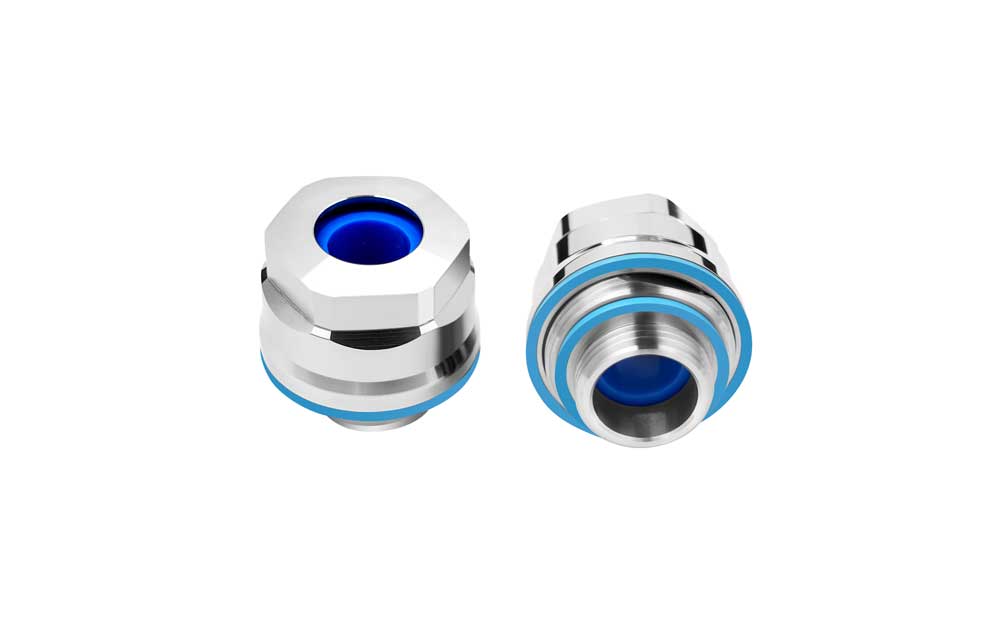

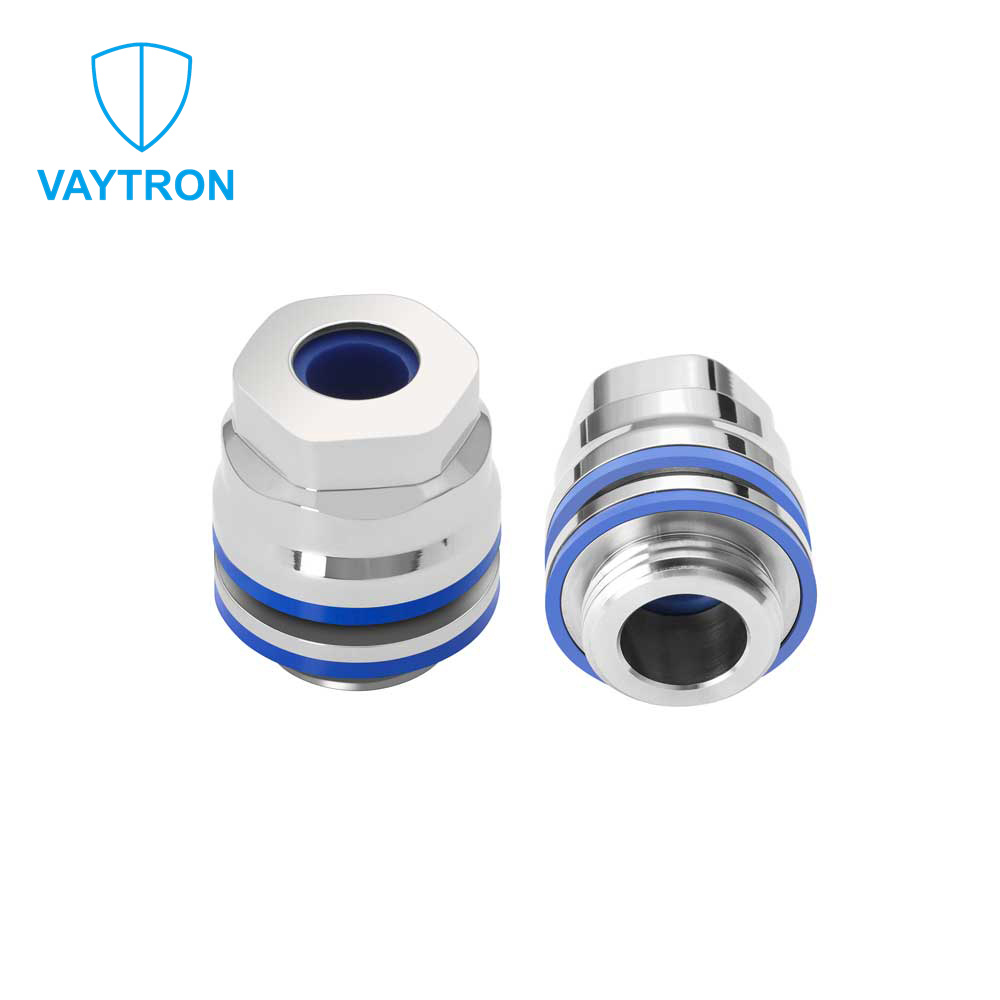

VTCG —— Hygienic Cable Gland — Type N (Narrow)
The Type N is the narrow version of our hygienic cable gland, for equipment where mounting depth or clearance is limited. It keeps the same SS316L (1.4404) hygienic design, blue FDA seals and IP68/IP69K rating as the Type S, in a more compact body that fits small installation positions.
What the narrow version is for
On machines with tight spacing – closely packed cable entries, shallow enclosures or limited clearance – a standard gland may not fit. The Type N gives you the same sealing and cleanability in a slimmer footprint, so you do not trade hygiene for space.
How it keeps clean and sealed
Same hygienic design as the Type S: a double sealing ring (blue H-NBR plus food-grade silicone), an anti-rotation gear-tooth grip, a drainable Ra < 0.8 µm body, and rugged corrosion-, impact-, acid- and alkali-resistant SS316L.
Specifications
Same materials, seals, ratings and thread/cable sizes as the Type S; the body is simply more compact. SS316L (1.4404), Ra < 0.8 µm; blue FDA H-NBR ring (-25 to +150 °C) and food-grade silicone cable seal (-60 to +200 °C); IP68 / IP69K; 3-A / FDA.
| Thread | Cable Range (mm) |
Cover Size D (mm) |
H (mm) |
GL (mm) |
Spanner Size (mm) |
| M12x1.5 | 4-7 | 21 | 19 | 6 | 14 |
| M16x1.5 | 4-6 | 27 | 20 | 6 | 19/21 |
| 5,5-8 | |||||
| 7,5-10 | |||||
| M20x1.5 | 4-6 | 33 | 22.5 | 6 | 24/27 |
| 5,5-8 | |||||
| 7,5-10 | |||||
| 9,5-12 | |||||
| 11,5-14 | |||||
| M25x1.5 | 11,5-14 | 38 | 23.5 | 7 | 30 |
| 13,5-16 | |||||
| 15,5-18 | |||||
| M32x2.0 | 18-20,5 | 45 | 26.5 | 8 | 36 |
| 20,5-23 | |||||
| 22,5-25 |
Typical applications
The same hygienic washdown areas as the Type S – dairy, beverage, bakery, meat and poultry, pharmaceutical, biotechnology and cleanrooms – wherever a standard gland will not fit the available space.
Why VAYTRON
Integrated in-house machining, finishing and sealing; OEM and custom threads (M, PG, NPT) on request; flexible MOQ and short lead times; 3-A and FDA documentation available.
Frequently asked questions
What is the difference between HNBR and EPDM seals?
HNBR: High mechanical strength and good resistance to oil, heat, wear, ozone, and ageing. Well suited to demanding sealing applications involving oils and lubricants.
EPDM: Excellent resistance to weathering, ozone, hot water, and steam, with good flexibility at low temperatures. Generally unsuitable for petroleum-based oils and fuels.
Based on our market observations, HNBR seals are common in food-processing equipment and EPDM seals in pharmaceutical equipment. For other applications, contact us to confirm the suitable material.
When should I choose Type N instead of Type S?
When installation depth or clearance is tight. The hygienic design, sealing and ratings are identical; only the body is more compact.
Are the sizes the same as the Type S?
Yes – M12×1.5 to M32×2.0 for cables Ø4 to 25 mm.
Is it still 3-A and IP69K?
Yes – the same hygienic SS316L design, blue FDA seals and IP68/IP69K as the standard version.
Tell us your installation space and cable specs, or request a quote.
