VTS31 —— Hygienic Carriage Bolt

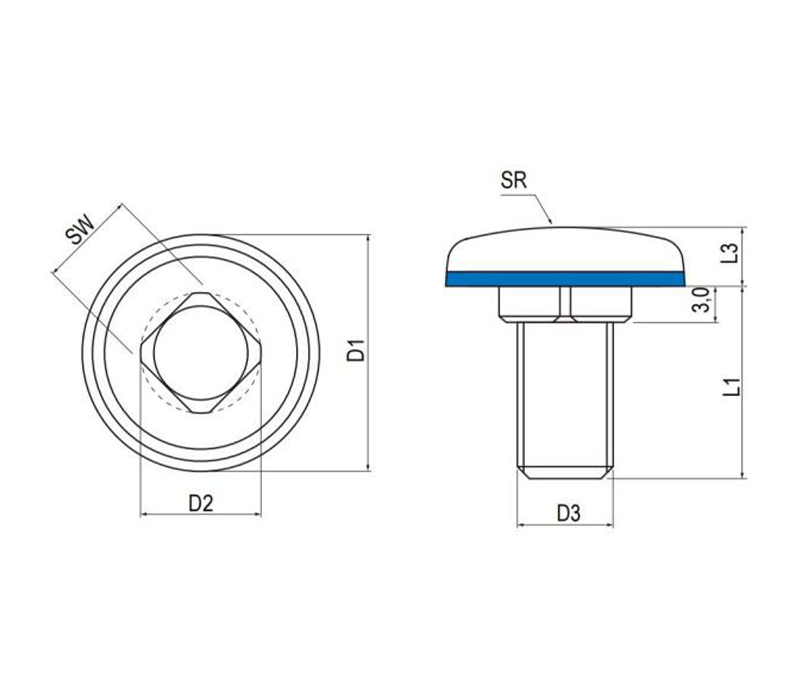

Technical Drawing & Dimensions
-
-
Part Series D3 L1 SW D1 D2 L3 SR CAR M5 10 16 20 25 30 40 5 14.7 7 3.3 25 CAR M6 16 20 25 30 40 50 6 17.4 8 3.9 30 CAR M8 16 20 30 40 50 60 8 19.8 10 4.9 35 CAR M10 20 25 30 40 50 60 70 10 23.4 12 5.4 40 CAR M12 25 30 40 50 60 70 80 12 27.4 14 7 50 CAR M16 25 30 40 50 60 70 80 16 33.4 18 9 60 CAR M20 25 30 40 50 60 70 80 20 10.4 22 11 70
Why Choose Vaytron Hygienic Fasteners?
Vaytron focuses on hygienic design components for food, beverage and pharmaceutical machinery. We offer product options for equipment manufacturers seeking practical fastening solutions, clear technical specifications and dependable manufacturing support.
Contact our team for drawings, available sizes, material details and quotations for your project.
Key Features

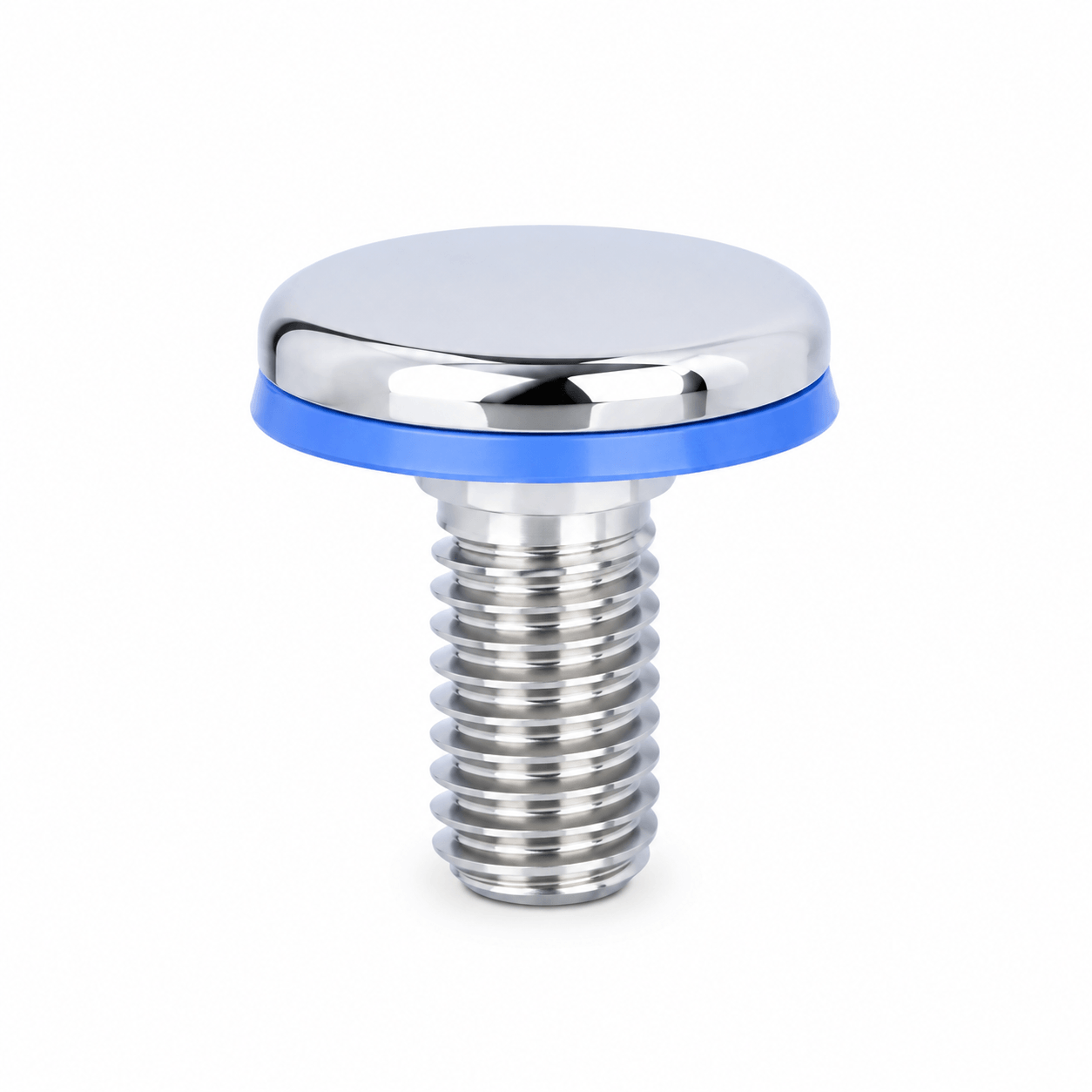

Hygienic design: Rounded head geometry designed for hygienic equipment applications.

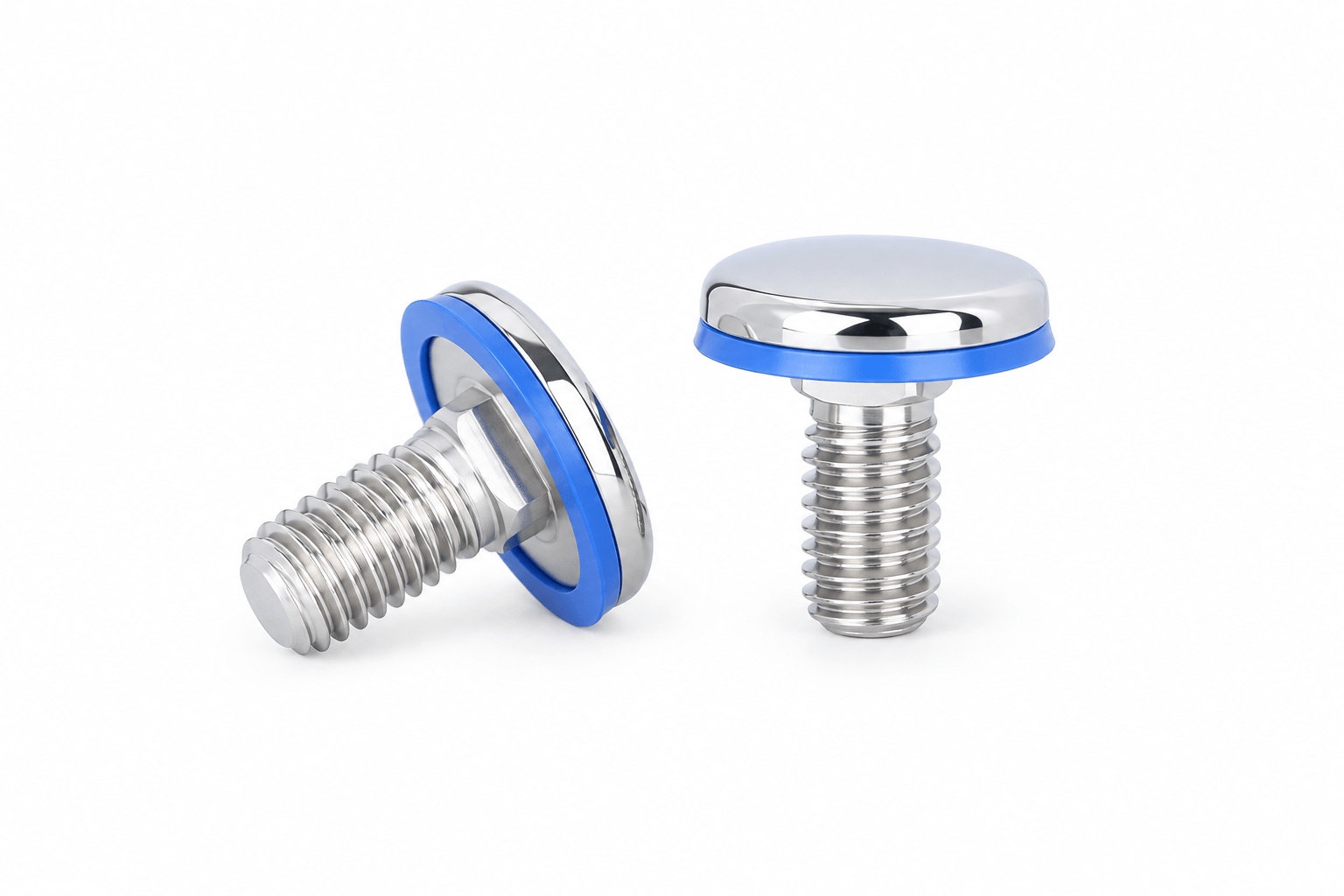

Integrated sealing ring: Blue seal helps close the gap between the fastener and the mounting surface.
Stainless steel construction: Suitable for industrial equipment applications, subject to the selected material grade and operating environment.
Easy integIndustrial applications: Designed for equipment requiring reliable fastening and consideration of cleaning requirements.ration: Available in different thread sizes and configurations, depending on the product range.
Industrial applications: Designed for equipment requiring reliable fastening and consideration of cleaning requirements.
Applications
Vaytron hygienic bolts are suitable for consideration in:
Food processing and packaging machinery
Dairy and beverage production equipment
Pharmaceutical processin
Stainless steel tanks and process equipment
Hygienic machine frames, guards and assemblies
