A005HD-12 Cabinet U-Handles

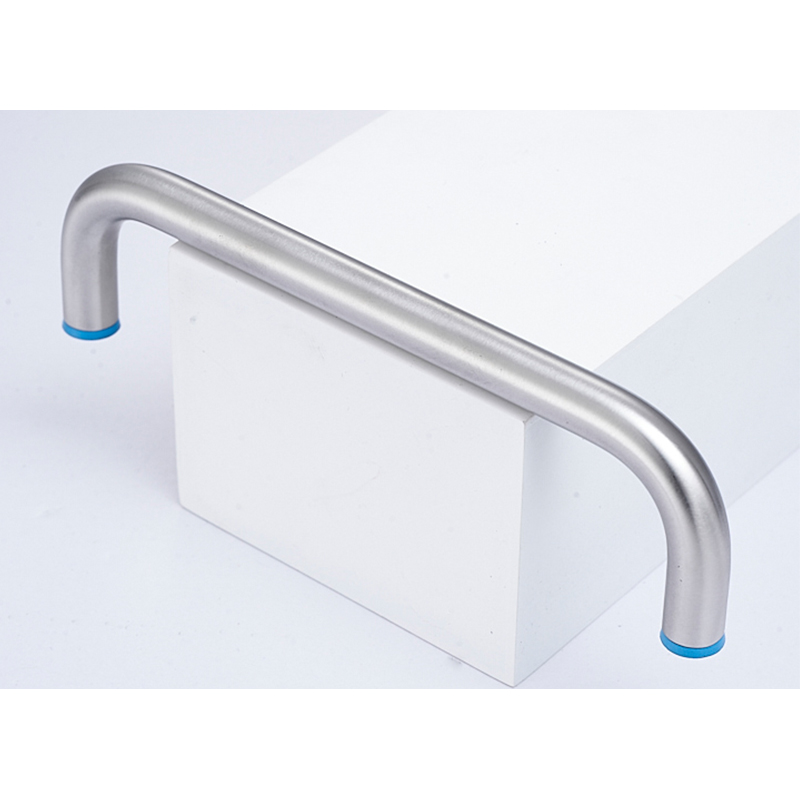

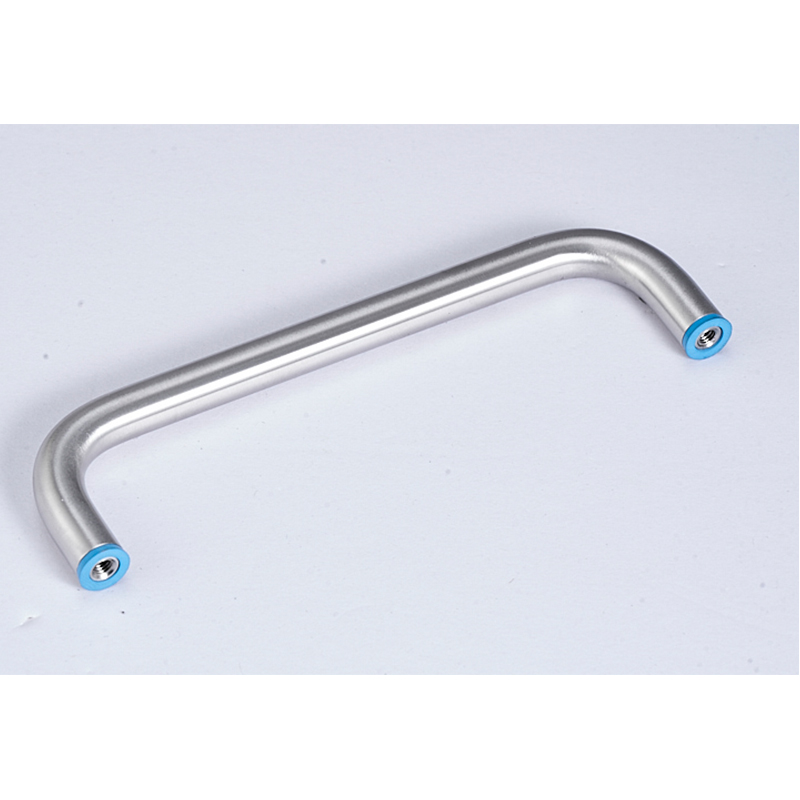

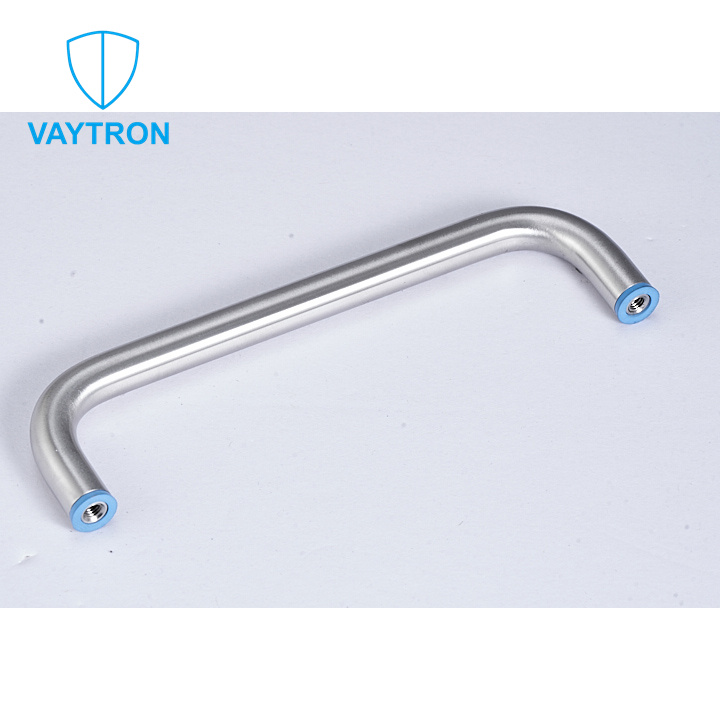

Hygienic Design Stainless Steel U-Handle, Designed to meet EHEDG and 3-A Sanitery principles.

A005HD-12 hygienic design handles are engineered for high-care zones where sanitation is critical:
· Food & Beverage: Dairy, meat processing, and bottling lines requiring frequent high-pressure washdowns.
· Pharmaceutical & Biotech: Cleanroom equipment and sterile laboratory furniture.
· Medical & Chemical: Hospital sterilization units and chemical mixing stations resistant to aggressive sanitizers.
· Packaging Machinery: Industrial equipment in food-grade environments requiring detectable blue seals.

Material: 316L / 304 Stainless Steel

Surface: Ra < 0.8 μm (Mirror Polish / Brush)

Seals: Blue HNBR /EPDM

product details

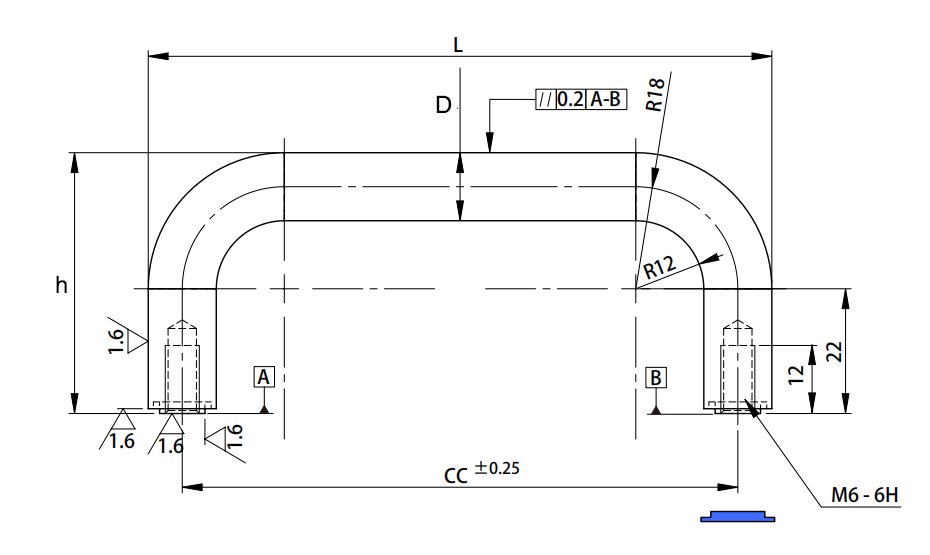

Technical Drawing & Dimensions

A005HD-12-hygienic-stainless-steel-handle-dimensions-drawing

Part Number	Material	CC (Hole Centers)	L (Length)	D (Diameter)	h (Height)	T (Thread Size)	t (Thread Depth)	Surface Treatment
05H-12-100-46-A2-PSS	AISI304 / 1.4301	100	112	φ12	46	M6	12mm	Mirror Polish
05H-12-120-46-A2-PSS	AISI304 / 1.4301	120	132	φ12	46	M6	12mm	Mirror Polish
05H-12-150-50-A2-PSS	AISI304 / 1.4301	150	162	φ12	50	M6	12mm	Mirror Polish
05H-12-188-50-A2-PSS	AISI304 / 1.4301	188	200	φ12	50	M6	12mm	Mirror Polish
05H-12-238-50-A2-PSS	AISI304 / 1.4301	238	250	φ12	50	M6	12mm	Mirror Polish
05H-12-288-50-A2-PSS	AISI304 / 1.4301	288	300	φ12	50	M6	12mm	Mirror Polish
05H-12-100-46-A2-BSS	AISI304 / 1.4301	100	112	φ12	46	M6	12mm	Brushed
05H-12-120-46-A2-BSS	AISI304 / 1.4301	120	132	φ12	46	M6	12mm	Brushed
05H-12-150-50-A2-BSS	AISI304 / 1.4301	150	162	φ12	50	M6	12mm	Brushed
05H-12-188-50-A2-BSS	AISI304 / 1.4301	188	200	φ12	50	M6	12mm	Brushed
05H-12-238-50-A2-BSS	AISI304 / 1.4301	238	250	φ12	50	M6	12mm	Brushed
05H-12-288-50-A2-BSS	AISI304 / 1.4301	288	300	φ12	50	M6	12mm	Brushed
05H-12-100-46-A4-PSS	AISI316 / 1.4401	100	112	φ12	46	M6	12mm	Mirror Polish
05H-12-120-46-A4-PSS	AISI316 / 1.4401	120	132	φ12	46	M6	12mm	Mirror Polish
05H-12-150-50-A4-PSS	AISI316 / 1.4401	150	162	φ12	50	M6	12mm	Mirror Polish
05H-12-188-50-A4-PSS	AISI316 / 1.4401	188	200	φ12	50	M6	12mm	Mirror Polish
05H-12-238-50-A4-PSS	AISI316 / 1.4401	238	250	φ12	50	M6	12mm	Mirror Polish
05H-12-288-50-A4-PSS	AISI316 / 1.4401	288	300	φ12	50	M6	12mm	Mirror Polish
05H-12-100-46-A4-BSS	AISI316 / 1.4401	100	112	φ12	46	M6	12mm	Brushed
05H-12-120-46-A4-BSS	AISI316 / 1.4401	120	132	φ12	46	M6	12mm	Brushed
05H-12-150-50-A4-BSS	AISI316 / 1.4401	150	162	φ12	50	M6	12mm	Brushed
05H-12-188-50-A4-BSS	AISI316 / 1.4401	188	200	φ12	50	M6	12mm	Brushed
05H-12-238-50-A4-BSS	AISI316 / 1.4401	238	250	φ12	50	M6	12mm	Brushed
05H-12-288-50-A4-BSS	AISI316 / 1.4401	288	300	φ12	50	M6	12mm	Brushed
05H-12-100-46-A4L-PSS	AISI316L / 1.4404	100	112	φ12	46	M6	12mm	Mirror Polish
05H-12-120-46-A4L-PSS	AISI316L / 1.4404	120	132	φ12	46	M6	12mm	Mirror Polish
05H-12-150-50-A4L-PSS	AISI316L / 1.4404	150	162	φ12	50	M6	12mm	Mirror Polish
05H-12-188-50-A4L-PSS	AISI316L / 1.4404	188	200	φ12	50	M6	12mm	Mirror Polish
05H-12-238-50-A4L-PSS	AISI316L / 1.4404	238	250	φ12	50	M6	12mm	Mirror Polish
05H-12-288-50-A4L-PSS	AISI316L / 1.4404	288	300	φ12	50	M6	12mm	Mirror Polish
05H-12-100-46-A4L-BSS	AISI316L / 1.4404	100	112	φ12	46	M6	12mm	Brushed
05H-12-120-46-A4L-BSS	AISI316L / 1.4404	120	132	φ12	46	M6	12mm	Brushed
05H-12-150-50-A4L-BSS	AISI316L / 1.4404	150	162	φ12	50	M6	12mm	Brushed
05H-12-188-50-A4L-BSS	AISI316L / 1.4404	188	200	φ12	50	M6	12mm	Brushed
05H-12-238-50-A4L-BSS	AISI316L / 1.4404	238	250	φ12	50	M6	12mm	Brushed
05H-12-288-50-A4L-BSS	AISI316L / 1.4404	288	300	φ12	50	M6	12mm	Brushed
