Why "Stainless" Isn't Enough: What EHEDG and 3-A Standards Actually Teach Us

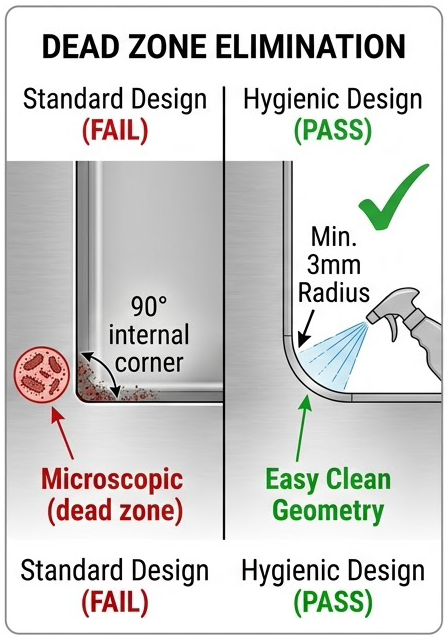

Hygienic design replaces sharp internal corners with smooth radii to eliminate dead zones and improve cleanability.

To design a truly hygienic machine, you have to stop thinking about stainless steel as a "save-all" material and start looking at the microscopic geometry of the parts. In my experience, the biggest threat to a food or pharma line isn't the grade of the metal—it’s the "dead zone." These are the tiny, invisible crevices, often at 90-degree internal corners, where product residue hides from even the most aggressive high-pressure washdowns. EHEDG standards aren't just being difficult when they demand a minimum 3mm internal radius; they are ensuring that a spray nozzle can actually reach and dislodge organic matter. If your operator can’t see the dirt, they can’t clean it, and those sharp corners quickly become a breeding ground for biofilm that a simple rinse won't touch.

The surface finish itself is another area where "shiny" is often confused with "clean." A component can look like a mirror to the naked eye but still be a mountain range of peaks and valleys under a microscope. We push for a surface roughness of Ra < 0.8 μm because, at that level, microorganisms lose their mechanical "grip" on the material. When your surfaces are this smooth, the part becomes fundamentally easier to clean. You’ll find that you actually save money over time because you’re using less water, fewer harsh chemicals, and shorter cleaning cycles to get a passing swab test.

A similar, and perhaps more common, liability is the exposed thread on leveling feet or adjustable handles. Every single groove in a standard screw is essentially a microscopic pocket designed to trap debris. Once food or chemical residue gets into those threads, it is shielded from sterilization unless you completely disassemble the component. This is why a hygienic expert will always look for telescopic sleeves or specialized, gap-free gaskets. If you can see the thread, you are looking at a red flag. We want to see a "sealed" environment where the male and female parts meet with a verified hygienic gasket, leaving zero room for ingress.

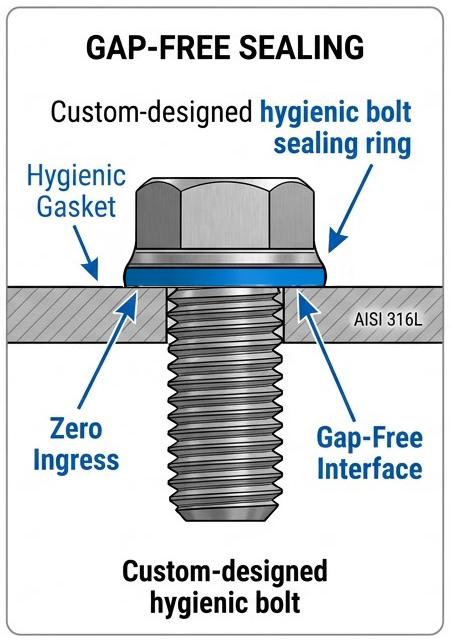

Custom-designed hygienic bolt with gap-free sealing prevents contamination ingress in food and pharmaceutical equipment.

We also have to consider the "What If" factor of material integrity. This is why we almost exclusively use "signal blue" elastomers for seals and gaskets. It isn't an aesthetic choice; it’s a safety protocol. If a piece of a standard black seal cracks and falls into a batch of chocolate product, it’s nearly impossible to detect. A bright blue fragment, however, is spotted instantly because blue isn't a natural color in most production streams. These FDA-compliant materials like EPDM or HNBR are also built to survive 150℃ steam and acidic cleaners without turning brittle, which is the only way to ensure the seal doesn't become the "weak link" in your entire assembly.

Finally, you have to let gravity do some of the work. If water is pooling on top of a handle or a bracket after a shift, you’ve invited microbial growth to sit right on your equipment. The 3°slope rule in hygienic design ensures that all liquids drain away completely. By choosing components with self-draining geometries, you aren't just checking a box for a 3-A audit—you are ensuring the machine actually dries after a washdown. Ultimately, investing in these details reduces your Total Cost of Ownership by cutting down cleaning windows and, most importantly, protecting you from the catastrophic risk of a product recall.

By Eric, Hygienic Design Specialist at Weichuang​
