A005HD-10 Cabinet U-Handles

Vaytron A005HD series cabinet U-handles are engineered for environments with the most stringent sanitation standards.

● Food & Beverage Machinery: Withstanding aggressive cleaning agents.

● Pharmaceutical Equipment: Maintaining sterile, easy-to-disinfect surfaces.

● Industrial Control Cabinets: Providing ergonomic, heavy-duty access.

Material:	Stainless Steel A4L-AISI 316L(1.4404)
	Stainless Steel A4-AISI 316(1.4401)
	Stainless Steel A2-AISI 304(1.4301)
Surface Finish:	Matte finish (Ra < 0.8 µm)
	Polished finish (Ra < 0.8 µm)
Sealing rings:	HNBR with a hardness of 85-90 Shore A
	EPDM with a hardness of 85-90 Shore A

product details

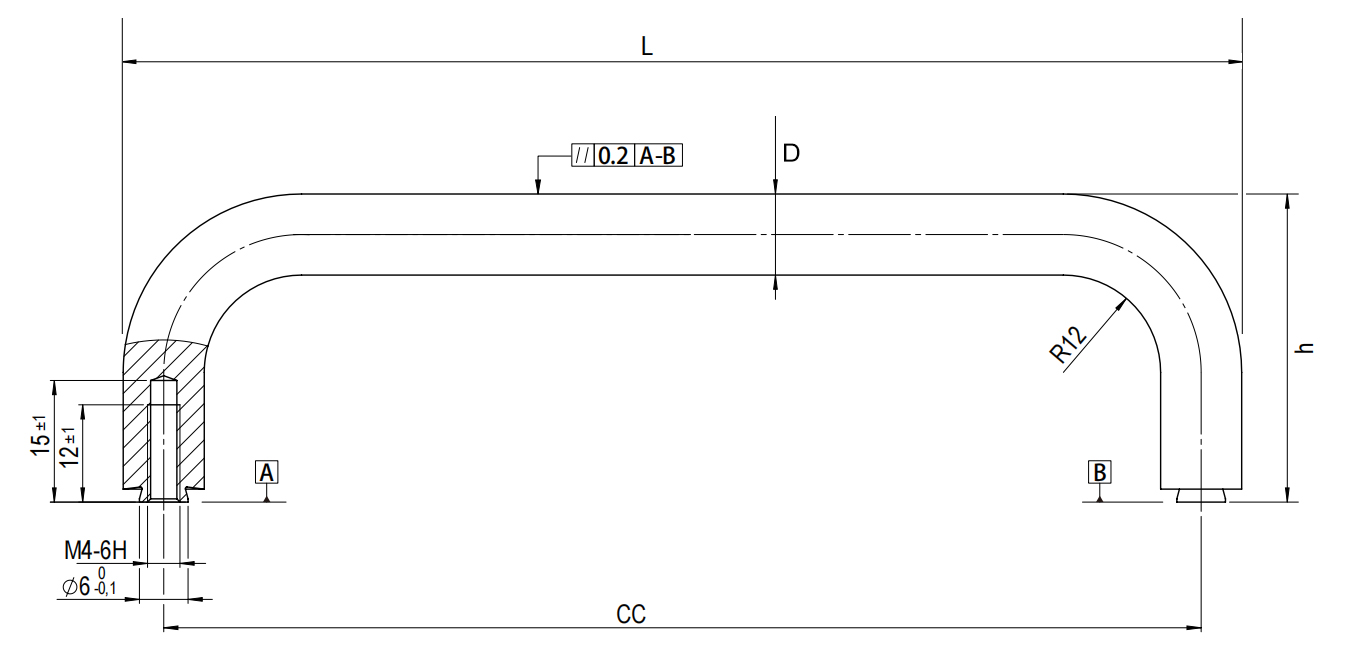

Technical Drawing & Dimensions

A005HD-10-hygienic-stainless-steel-handle-dimensions-drawing

Part Number	Material	CC (Hole Centers)	L (Length)	D	h(Height)	T(Thread Size)	t(Thread Depth)	Surface Treatment
05H-10-88-40-A2-PSS	AISI304 / 1.4301	88	98	φ10	40	M4	12mm	Mirror Polish
05H-10-128-40-A2-PSS	AISI304 / 1.4301	128	138	φ10	40	M4	12mm	Mirror Polish
05H-10-160-40-A2-PSS	AISI304 / 1.4301	160	170	φ10	40	M4	12mm	Mirror Polish
05H-10-192-40-A2-PSS	AISI304 / 1.4301	192	202	φ10	40	M4	12mm	Mirror Polish
05H-10-88-40-A2-BSS	AISI304 / 1.4301	88	98	φ10	40	M4	12mm	Brushed
05H-10-128-40-A2-BSS	AISI304 / 1.4301	128	138	φ10	40	M4	12mm	Brushed
05H-10-160-40-A2-BSS	AISI304 / 1.4301	160	170	φ10	40	M4	12mm	Brushed
05H-10-192-40-A2-BSS	AISI304 / 1.4301	192	202	φ10	40	M4	12mm	Brushed
05H-10-88-40-A4-PSS	AISI316 / 1.4401	88	98	φ10	40	M4	12mm	Mirror Polish
05H-10-128-40-A4-PSS	AISI316 / 1.4401	128	138	φ10	40	M4	12mm	Mirror Polish
05H-10-160-40-A4-PSS	AISI316 / 1.4401	160	170	φ10	40	M4	12mm	Mirror Polish
05H-10-192-40-A4-PSS	AISI316 / 1.4401	192	202	φ10	40	M4	12mm	Mirror Polish
05H-10-88-40-A4-BSS	AISI316 / 1.4401	88	98	φ10	40	M4	12mm	Brushed
05H-10-128-40-A4-BSS	AISI316 / 1.4401	128	138	φ10	40	M4	12mm	Brushed
05H-10-160-40-A4-BSS	AISI316 / 1.4401	160	170	φ10	40	M4	12mm	Brushed
05H-10-192-40-A4-BSS	AISI316 / 1.4401	192	202	φ10	40	M4	12mm	Brushed
05H-10-88-40-A4L-PSS	AISI316L / 1.4404	88	98	φ10	40	M4	12mm	Mirror Polish
05H-10-128-40-A4L-PSS	AISI316L / 1.4404	128	138	φ10	40	M4	12mm	Mirror Polish
05H-10-160-40-A4L-PSS	AISI316L / 1.4404	160	170	φ10	40	M4	12mm	Mirror Polish
05H-10-192-40-A4L-PSS	AISI316L / 1.4404	192	202	φ10	40	M4	12mm	Mirror Polish
05H-10-88-40-A4L-BSS	AISI316L / 1.4404	88	98	φ10	40	M4	12mm	Brushed
05H-10-128-40-A4L-BSS	AISI316L / 1.4404	128	138	φ10	40	M4	12mm	Brushed
05H-10-160-40-A4L-BSS	AISI316L / 1.4404	160	170	φ10	40	M4	12mm	Brushed
05H-10-192-40-A4L-BSS	AISI316L / 1.4404	192	202	φ10	40	M4	12mm	Brushed
